Our Fleet We have a mobile LED screen for any size event!

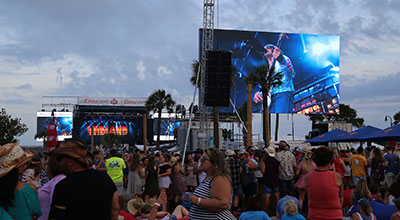

Jupiter 22’ x 42’ Tractor-Trailer Mounted 8mm LED Screen
Blow your crowd away with the largest tractor-trailer mounted LED screen in North America! Taking as little as 60 minutes to set up, The Jupiter Tractor-Trailer Mounted LED Screen suits a wide range of needs for outdoor events. Jupiter’s 22’ by 42’ screen will handle everything from image magnification to graphics playback. Adding to its versatility, Jupiter also features an on board generator, making remote placement more convenient.
Jupiter’s 8mm LED Display offers a view like no other LED truck on the market. Outfitted with the latest in LED technology, its brightness, color depth and clarity will make your event larger than life. Need a more versatile screen? Our LED panels are available in a modular system that can be customized to fit your exact specifications.
Need more than a screen? Jupiter features a comfortable on board control room capable of handling multi-camera switching, graphics playback, live social feeds and much more. Customizable packages are available.
• Pixel Pitch: 8mm
• Screen Height: 22’; Width: 42’; Depth: 34”
• 7,000 Nit Brightness
• Control System: Novastar Pro HD LED Processor
• Input Signal: SDI, DVI, HDMI, DP
• Input Resolution: 1080p, 1080i, 720p, 480i
• 69 Billion Display Colors
• Graduation Method: 65,536 Shades Per Color
• Operating Temperature: 15 Degrees To 120 Degrees Fahrenheit
• Horizontal Viewing Cone: 140 Degrees; Vertical Viewing Cone 75 Degrees
• Rotation: 360 Degrees (180 Degrees Left/180 Degrees Right)
• At Maximum Height, The Top Of The Screen Is At 38’ and the bottom of the
screen is at 16’
• Minimum Recommended Viewing Distance – 35’
• Average Power Consumption 65- 130 Amps 3-Phase
TRUCK/TRAILER DIMENSIONS
• Tractor: 27’ Long x 9’ Wide x 13’ 4” Tall
• Trailer: 53’ Long x 8’ 2” Wide x 13’ 4” Tall
• Outriggers: Extend 48” From The Trailer
• Trailer Footprint: 53’ Long x 16’ 6” Wide With Outriggers Fully Extended
• Weight: Tractor- 18,000 lb; Trailer – 52,000 lb; Total = 70,000 lb
GENERATOR/POWER SPECIFICATIONS
• Generator: Kohler 60 KVA
• Fuel Capacity: 150 Gallons
• Usage: 2-3 Gallons Per Hour
• Shore Power Requirements: 200 Amps of 120/208V 3-Phase Power;
Cam-lock Connectors With Series 16 Female Cam Plug; 235A, 600V #2 to
2/0 AWG
Saturn 17’ x 32’ Tractor-Trailer Mounted 8mm LED Screen
Saturn’s 8mm LED Display offers a view like no other LED truck on the market. Outfitted with the latest in LED technology, its brightness, color depth and clarity will make your event larger than life. Need a more versatile screen? Our LED panels are available in a modular system that can be customized to fit your exact specifications.
Need more than a screen? Saturn features a comfortable on board control room capable of handling multi-camera switching, graphics playback, live social feeds and much more. Customizable packages are available.
• Screen Height: 17’; Width: 32’; Depth: 34”
• 7,000 Nit Brightness
• Control System: Novastar Pro HD LED Processor
• Input Signal: SDI, DVI, HDMI, DP
• Input Resolution: 1080p, 1080i, 720p, 480i
• 69 Billion Display Colors
• Graduation Method: 65,536 Shades Per Color
• Operating Temperature: 15 Degrees To 120 Degrees Fahrenheit
• Horizontal Viewing Cone: 140 Degrees; Vertical Viewing Cone 75t Degrees
• Rotation: 360 Degrees (180 Degrees Left/180 Degrees Right)
• At Maximum Height, The Top Of The Screen Is At 33’ and The Bottom Of The Screen Is At 16’
• Minimum Recommended Viewing Distance – 35’
• Average Power Consumption 65- 130 Amps
TRUCK/TRAILER DIMENSIONS
• Tractor: 27’ Long x 9’ Wide x 13’ 4” Tall
• Trailer: 48’ Long x 8’ 2” Wide x 13’ 4” Tall
• Outriggers: Extend 42” From The Trailer
• Trailer Footprint: 48’ Long x 15’ Wide With Outriggers Fully Extended
• Weight: Tractor- 18,000 lb; Trailer – 45,000 lb; Total = 63,000 lb
GENERATOR/POWER SPECIFICATIONS
• Generator: 70 KVW Whisperwatt
• Fuel Capacity: 80 Gallons
• Usage: 1-2 Gallons Per Hour
• Shore Power Requirements: 200 Amps of 120/208V 3-Phase Power; Cam-lock
Connectors With Series 16 Female Cam Plug; 235A, 600V #2 to 2/0 AWG
Mercury 12.5’ x 21’ 12’ x 21’ LED Screen
Mars 12’ x 20’ Trailer Mounted 5.9mm LED Screen
Mars’ 5.9mm LED Display offers crystal clear view in an impressive packages. Outfitted with the latest in LED technology, its brightness, color depth and clarity will make your event larger than life. Need a more versatile screen? Our LED panels are available in a modular system that can be customized to fit your exact specifications.
Need more than a screen? We are capable of handling multi-camera switching, graphics playback, live social feeds and much more. Customizable packages are available.
• Pixel Pitch: 5.9mm
• Screen Height: 12’; Width: 20’; Depth: 3”* can be configured up to 13’ x 23’ *
• 6,000 Nit Brightness
• Control System: Novastar Pro HD LED Processor
• Input Signal: SDI, DVI, HDMI, DP
• Input Resolution: 1080p, 1080i, 720p, 480i
• Operating Temperature: 15 Degrees To 120 Degrees Fahrenheit
• Horizontal Viewing Cone: 140 Degrees; Vertical Viewing Cone 75t Degrees
• Rotation: 360 Degrees (180 Degrees Left/180 Degrees Right)
• At Maximum Height Capacity, The Top Of The Screen Is At 29.5’ and The Bottom
Of The Screen Is At 16’ 6”
• Minimum Recommended Viewing Distance – 20’
• Average Power Consumption 30 – 60 Amps
TRUCK/TRAILER DIMENSIONS
• Trailer: 23’3” Long x 7’5” Wide x 11’ 6” High (Travel Height)
• Footprint: 23’ 3” Long x 15’ 5” Wide
• Outriggers Extend 4’ From the Trailer
• Combined Trailer And Screen Weight: 11,400 lbs.
Pluto 8’2” x 14’9” Compact Trailer Mounted 5.9mm LED Screen
Pluto’s Modular 5.9mm LED Display offers a view like no other LED truck on the market. Outfitted with the latest in LED technology, its brightness, color depth and clarity will make your event larger than life. Need a more versatile screen? Our LED panels are available in a modular system that can be customized to fit your exact specifications.
Need more than a screen? We are capable of handling multi-camera switching, graphics playback, live social feeds and much more. Customizable packages are available.
• Pixel Pitch: 5.9mm
• Screen Height: 8’2”; Width: 14’9”
• Control System: Novastar Pro HD LED Processor
• Input Signal: SDI, DVI, HDMI, DP
• Input Resolution: 1080p, 1080i, 720p, 480i
• 69 Billion Display Colors
• Graduation Method: 65,536 Shades Per Color
• Operating Temperature: 15 Degrees To 120 Degrees Fahrenheit
• Horizontal Viewing Cone: 140 Degrees; Vertical Viewing Cone 75 Degrees
• Rotation: 360 Degrees (180 Degrees Left/180 Degrees Right)
*at 10 degree increments
• At Maximum Height, the top of the trailer is at 15’
• Recommended Viewing Distance: 12’
TRAILER DIMENSIONS:
• Trailer: 16’1” Long x 7’ 8” Wide x 2’ Tall
• Outriggers: Extend Beneath the Trailer
• Trailer Footprint: 16’1” Long x 8’ Wide With Outriggers Fully Extended
• Trailer and Screen Weight: 5380 lbs
Venus 9’5” x 16’ 9” Trailer Mounted 8mm LED Screen
Venus’ 8mm LED Display offers a view like no other LED truck on the market. Outfitted with the latest in LED technology, its brightness, color depth and clarity will make your event larger than life. Need a more versatile screen? Our LED panels are available in a modular system that can be customized to fit your exact specifications.
Need more than a screen? Venus features a comfortable on board control room capable of handling multi-camera switching, graphics playback, live social feeds and much more. Customizable packages are available.
• Pixel Pitch: 8mm
• Screen Height: 9’5”; Width: 16’9”
• 6,500 Nit Brightness
• Control System: Novastar Pro HD LED Processor
• Input Signal: SDI, DVI, HDMI, DP
• Input Resolution: 1080p, 1080i, 720p, 480i
• Graduation Method: 65,536 Shades Per Color
• Operating Temperature: 15 Degrees To 120 Degrees Fahrenheit
• Horizontal Viewing Cone: 140 Degrees; Vertical Viewing Cone 75 Degrees
• Minimum Recommended Viewing Distance – 20’
• Average Power Consumption 50 -80 Amps 3-Phase
TRAILER DIMENSIONS
• Trailer: 18’ Long x 8’ Wide x 9’ Tall
• Combined Truck And Screen Weight: 24,000 lbs.
• Outriggers:Extend 42” FRom The Trailer
• Trailer Footprint: 26’ Long x 16’ Wide With Outriggers Fully Extended
• *Note, there is an 8ft non-removable goose-neck attachment on the trailer
GENERATOR/POWER SPECIFICATIONS
• On-board Fischer Panda (Military-grade) generator
• Ultra Quiet
Russell 12’ 7” x 21’ Truck - Mounted 8mm LED Screen
Russell HD’s 8mm LED Display offers a wonderful view to an audience. Outfitted with the latest in LED technology, its brightness, color depth and clarity will make your event larger than life. Need a more versatile screen? Our LED panels are available in a modular system that can be customized to fit your exact specifications.
Need more than a screen? Russell HD features an on board control room capable of handling multi-camera switching, graphics playback, live social feeds and much more. Customizable packages are available.
• Pixel Pitch: 8mm
• Screen Height: 12’ 7”; Width: 21’
• 6,500 Nit Brightness
• Control System: Novastar Pro HD LED Processor
• Input Signal: SDI, DVI, HDMI, DP
• Input Resolution: 1080p, 1080i, 720p, 480i
TRUCK/TRAILER DIMENSIONS
• Bottom of Screen – 8’5” off the ground
• Footprint: 31’6” x 10’5”
• Outriggers extend beneath the vehicle
• Total Truck and Screen Weight: 28,000 lbs
GENERATOR/POWER SPECIFICATIONS
• On board generator
• Diesel Fueled
Neptune 14’ x 24’ Tractor-Trailer Mounted 8mm LED Screen
Neptune’s 8mm LED Display offers a view like no other LED truck on the market. Outfitted with the latest in LED technology, its brightness, color depth and clarity will make your event larger than life. Need a more versatile screen? Our LED panels are available in a modular system that can be customized to fit your exact specifications.
Need more than a screen? Neptune features a comfortable on board control room capable of handling multi-camera switching, graphics playback, live social feeds and much more. Customizable packages are available.
• Pixel Pitch: 8mm
• Screen Height: 14’; Width: 24’; Depth: 34”
• 7,000 Nit Brightness
• Control System: Novastar Pro HD LED Processor
• Input Signal: SDI, DVI, HDMI, DP
• Input Resolution: 1080p, 1080i, 720p, 480i
• 69 Billion Display Colors
• Graduation Method: 65,536 Shades Per Color
• Operating Temperature: 15 Degrees To 120 Degrees Fahrenheit
• Horizontal Viewing Cone: 140 Degrees; Vertical Viewing Cone 75t Degrees
• Rotation: 360 Degrees (180 Degrees Left/180 Degrees Right)
• At Maximum Height Capacity, The Top Of The Screen Is At 27’ and The Bottom Of The Screen Is At 14’
• Minimum Recommended Viewing Distance – 50’
• Average Power Consumption 65- 130 Amps
• Maximum Power Consumption – 250 Amps At Peak White
TRUCK/TRAILER DIMENSIONS
• Tractor: 27 ‘ Long x 9’ Wide x 13’ 4” Tall
• Trailer: 42’ Long x 8’ 2” Wide x 13’ 4” Tall
• Outriggers:Extend 42” From The Trailer
• Trailer Footprint: 42’ Long x 15’ Wide With Outriggers Fully Extended
• Weight: Tractor – 12,500 lb; Trailer – 38,500 lb; total = 51,000 lb
GENERATOR/POWER SPECIFICATIONS
• Generator: 70 KVW Whisperwatt
• Fuel Capacity: 80 Gallons
• Usage: 1-2 Gallons Per Hour
• Shore Power Requirements: 200 Amps of 120/208V 3-Phase Power; Cam-lock Connectors With Series 16 Female Cam Plug; 235A, 600V #2 to 2/0 AWG
Ceres 11’ x 19’ Truck - Mounted 8mm LED Screen
Ceres’ 8mm LED Display offers a wonderful view to an audience. Outfitted with the latest in LED technology, its brightness, color depth and clarity will make your event larger than life. Need a more versatile screen? Our LED panels are available in a modular system that can be customized to fit your exact specifications.
Need more than a screen? Ceres features an on board control room capable of handling multi-camera switching, graphics playback, live social feeds and much more. Customizable packages are available.
• Pixel Pitch: 8mm
• Height: 11’ ; Width: 19’
• 7,000 Nit Brightness
• Control System: Novastar Pro HD LED Processor
• Input Signal: SDI, DVI, HDMI, DP
• Input Resolution: 1080p, 1080i, 720p, 480i
• 69 Billion Display Colors
• Graduation Method: 65,536 Shades Per Color
• Operating Temperature: 15 Degrees To 120 Degrees Fahrenheit
• Horizontal Viewing Cone: 140 Degrees; Vertical Viewing Cone 75 Degrees
• Rotation: 360 Degrees (180 Degrees Left/180 Degrees Right)
• At Maximum Height Capacity:
The Top Of The Screen Is At 27’ and The Bottom Of The Screen Is At 14’
• Minimum Recommended Viewing Distance – 50’
• Average Power Consumption 65- 1 30 Amps
• Maximum Power Consumption – 250 Amps At Peak White
TRUCK/TRAILER DIMENSIONS
• Truck: 11 ‘8”h x 8’6”w x 29’6”d
• Combined Truck And Screen Weight: 24,000 lbs.
• Outriggers Extend Directly Beneath The Screen Truck
GENERATOR/POWER SPECIFICATIONS
• Generator Output (110/220V): 20 KWA Diesel Generator
• Decible Level: Less Than 10db At 50’
• Feul Capacity: 35 Gallons
• Shore Power: 60 Amps, 120/208 3-Phase, 16 Series Camlock
Modular LED Screens 2.84mm - 15mm
With a pixel pitch of 2.84mm, the digiLED DLPi 2.84 LED Module offers designers a rugged, ultra-high resolution LED product. Black shell 3-in-1 SMD LEDs offer designers & content creators ultra-high definition images.
Further enhancing the user experience and reliability is the NovaStar processing for precise module-tomodule calibration. The DLPi2.84 uses the NovaStar A8 receiving card that supports 18bit+ gray scale output when used with a 4K NovaStar processor. This ensures accurate color matching for an overall excellent image and greatly improved blacks and grays. DLPi 2.84 LED modules are both front or rear serviceable with power supply, processor, or components all modular for easy servicing.
digiled dlpi 3.9mm indoor LED Panel
With a pixel pitch of 3.9mm, the digiLED DLPi3.9 LED Module offers designers a rugged, ultra-high resolution LED product. Black shell 3-in-1 SMD LEDs offer designers and content creators ultra-high definition images.
The product works with a range of accessories including variable angle couplers (VAC) for up to 15˚ convex/
concave screens and triangle & rounded cornered tiles. Contact us for more information on accessories.
Further enhancing the user experience & reliability is the NovaStar processing for precise module to module calibration that ensures accurate color matching for an overall excellent image.
digiled dlpi 5.9mm Outdoor LED Panel
Providing a pixel pitch of 5.9mm, the digiLED DLPo5.9 LED Module offers designers a rugged, high-resolution LED module. With black shell 3-in-1 SMD LEDs, the DLPo5.9 module offers designers and content creators a high definition image paired with a high contrast ratio for dynamic imagery.
The product works with a range of accessories including variable angle couplers (VAC) for up to 15˚ convex/
concave screens, corner LED tiles for true right angled connections.
Further enhancing the user experience and reliability of the DLPo5.9 LED Module is the NovaStar processing for precise module-to-module calibration that ensures accurate color matching for an overall excellent image.
digiled MK7 – 7mm Outdoor LED Panel
The 7mm pixel pitch of the MK7 allows for crisp high definition imagery. With a range a of hanging or stacking options, this LED video product provides the dynamic looks that make your designs stand out.
The digiLED MK7 employs digiLED’s Image Optimisation Technology (IOT) ensures high quality image reproduction in any situation. The powerful new processing system with the digiLED Navigator processor maintains full 16 bit depth whatever the brightness, for images free of contouring and quantizing, with perfect greyscale transition. Further IOT firmware configurations are preset for frequently used situations, whether the job demands maximum refresh rate, brightness, or super smooth greyscales.
digiled MC7 – 7mm Outdoor Blow-Through LED Panel
When your designs require blow through video displays, dynamic video backdrops, or vibrant lighting effects the digiLED MC7 is the right choice to give your designs visual impact. The 7mm pixel pitch of the MC7 allows for crisp high definition imagery paired with the ability to allow light, audio, or effects to pass through the LED screen. With its 12% transparency, the high-resolution MC7 screens can deal with higher speed winds over any other high resolution LED video screen. With a range a of hanging or stacking options as well as touring frames, this LED video product provides the dynamic looks that make your designs stand out.
Further enhancing the user experience and reliability of the digiLED MC7 LED Module is the NovaStar processing for precise module-to-module calibration that ensures accurate color matching for an overall excellent image. The LED product maintains full 16-bit depth whatever the brightness, for images free of contouring and quantizing, with perfect greyscale transition.
digiled mc15 – 15mm Outdoor Blow-Through LED Panel
The digiLED Mirage MC15 Transparent LED Module allows designers to use its transparency and 15mm resolution to layer LED over other LED products, lights, or allow special effects and audio to blow through the LED screen.
The 15mm pixel pitch of the MC15 allows for crisp medium-definition imagery paired with a mesh transparency. With a range a of hanging or stacking options along with touring frames, this LED video product provides the dynamic looks that make your designs stand out. The MC15 also allows for flexible creativity as the module has the ability to be curved, in a concave or convex arrangement, up to 15 degrees in either direction.
The MC15 works with digiLED’s Navigator processor to maintain full 16 bit depth whatever the brightness, for images free of contouring and quantizing, with perfect greyscale transition. Further IOT firmware configurations are preset for frequently used situations, whether the job demands maximum refresh rate, brightness, or super smooth greyscales.
INTEREST IN OUR MOBILE LED SERVICE?
LED Trucks for all your events Whatever kind of event you have in mind, we have the LED screen to fit the bill. If it is an indoor venue (such as a large-scale conference) or an outdoor one (such as a music festival, state fair, etc.), we have the technology, modular or mobile to help your event go swimmingly. Our highly trained staff are approachable, knowledgeable and tech-savvy is second to none.
INTEREST IN OUR MOBILE LED SERVICE?
Gallery Browse our LED Screens in action.
INTEREST IN OUR MOBILE LED SERVICE?
Testimonials
INTEREST IN OUR MOBILE LED SERVICE?
LEDTruckCompany Experience your events in glorious high resolution!
Major corporations and colleges make good use of the jumbotron screens- so why shouldn’t you? Our LED trucks are top quality, with crisp high definition displays. Perfect for any large-scale event!
Wherever you are in the country, you are never far away from LEDTruckCompany. We’ve got offices on the East and West Coasts, not to mention Canada! As if that weren’t enough, our inventory of truck and trailer mounted LED screens is the largest in North America! We are renowned for the speed and efficiency of our set-up service, as well as the overall quality and value for money of the video experience we provide.
Types of Screens
Best for the Largest Events
Easily navigated in to tighter spaces, also great delay screens.
Smaller form factor with big impact.
Great for ultra-short setup times.
Reasons To Hire LEDTruckCompany Our LED trucks are here to make the day.
LEDTruckCompany has access to the largest truck and trailer-mounted LED Screen inventory in North America. With offices on the East Coast, West Coast and Canada we are able to bring a mobile LED screen to any event. With a very quick setup time, our screens save time and money while providing an impressive video experience for anyone at an event.
